| ◆ 产品编号：p0006535 |
| ◆ 产品名：ICE ONE/TWO/THREE-AS独立式优质制冰机 |
|
|
| |
| |
|
|
| |
|
| 产品详细介绍 |
| 产品介绍： |

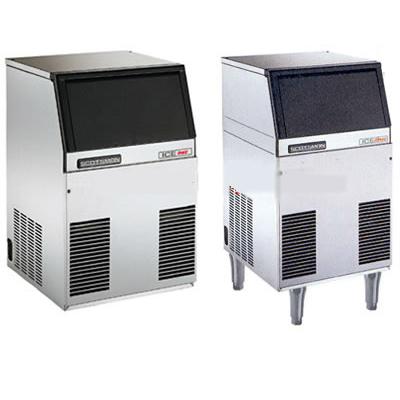

◆独立式优质制冰机
◆ICE ONE 制冰机的z大产冰量为：23Kg/24小时*；
◆ICE TWO 制冰机的z大产冰量为：31Kg/24小时*；
◆ICE THREE 制冰机的z大产冰量为：38Kg/24小时*；
◆ICE ONE、ICE TWO、ICE THREE制冰机的安装、维护保养和维修简单易做。
◆传统的SCOTSMAN制冰系统：晶莹剔透的圆型冰块融化缓慢。
◆ICE ONE、ICE TWO、ICE THREE制冰机的外壳均为AISI 304不锈钢板。
◆*以上数据指环境温度、水温度均为10℃。 | |
|
| 技术参数 |
| 型 号 |
ICE ONE AS |
ICE TWO AS |
ICE THREE AS |
|
|
|
|
|
|
| z大产冰量/24小时*中型冰块数量/24小时* |
23kg(51 lbs)/1150 |
31kg(68 lbs)/1550 |
38kg(84 lbs)/1900 |
|
|
|
|
|
|
| 储冰量(kg) |
14 (31 lbs) |
14 (31 lbs) |
14 (31 lbs) |
|
|
|
|
|
|
| 高(有/无腿)(mm) |
728/725 |
858/725 |
910/777 |
|
|
|
|
|
|
| 宽(mm) |
457 |
457 |
457 |
|
|
|
|
|
|
| 深(mm) |
480 |
522 |
522 |
|
|
|
|
|
|
| 冷凝方式 |
风冷 |
风冷 |
风冷 |
|
|
|
|
|
|
| 外表面 |
不锈钢 |
不锈钢 |
不锈钢 |
|
|
|
|
|
|
| 制冷剂 |
R134a |
R134a |
R134a |
|
|
|
|
|
|
| 压缩机功率(HP) |
1/4 |
1/4 |
3/8 |
|
|
|
|
|
|
| 冰块尺寸 |
M |
M |
M |
|
|
|
|
|
|
| 耗水量(升/小时) |
4.6 |
4 |
6 |
|
|
|
|
|
|
| 电源 |
220/50/1 |
220/50/1 |
220/50/1 |
|
|
|
|
|
|
| 最小线径(mm2) |
3×1 |
3×1 |
3×1 |
|
|
|
|
|
|
| 总电流(A) |
2.2 |
2.2 |
3.2 |
|
|
|
|
|
|
| 额定功率(W) |
340 |
360 |
500 |
|
|
|
|
|
|
| 保险丝(A) |
10 |
10 |
10 |
|
|
|
|
|
|
| 耗电量(千瓦/24小时) |
6.5 |
7 |
10 |
|
|
|
|
|
|
| 净重(kg) |
39 |
41 |
48 |
|
|
|
|
|
|
| 毛重(kg) |
46 |
49 |
55 | |
|
