| ◆ 产品编号：p0017296 |

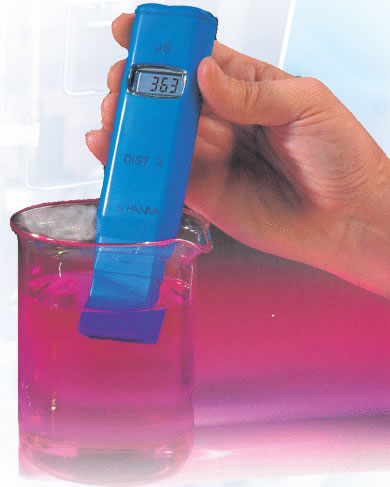

| ◆ 产品名：HI98301/302/303/304型笔式电导/总固体溶解度仪 |
|
|
| |
| |
|
|
| |
|
| 产品详细介绍 |
DIST系列产品质量可靠,能快速、精确地测量电导率和总固体溶解量,不需要比色或使用滴定瓶,只需将测试笔插入被测样品中即可读取数值。
可自动进行0到50℃温度补偿,温度补偿系数设定为2％,确保测量数据准确无误。校正快捷简单,只需将电极插入校正液中,调整校正旋钮即可。 |
|
| 技术参数 |
|
|
| 型号 |
HI98301(DIST1) |
HI98302(DIST2) |
HI98303(DIST3) |
HI98304(DIST4) |
|
|
|
|
|
| 测量范围 |
0to1999ppm(mg/l) |
0.00to10.00ppt(g/l) |
0to1999μS/cm |
0.00to19.99mS/cm |
|
|
|
|
|
| 解析度 |
1ppm(mg/l) |
0.01ppt(g/l) |
1μS/cm |
0.01mS/cm |
|
|
|
|
|
| 精度 |
+/-2%F.S. |
+/-2%F.S. |
+/-2%F.S. |
+/-2%F.S. |
|
|
|
|
|
| EMC偏差 |
+/-1%F.S. |
+/-1%F.S. |
+/-1%F.S. |
+/-1%F.S. |
|
|
|
|
|
| 校正液 |
HI7032L/HI70442P |
HI70038P |
HI7031L |
HI7039L/HI7030L |
|
|
|
|
|
| 校正 |
手动1点校正 |
手动1点校正 |
手动1点校正 |
手动1点校正 |
|
|
|
|
|
| 温度补偿 |
自动温度补偿0 to 50℃ |
自动温度补偿0 to 50℃ |
自动温度补偿0 to 50℃ |
自动温度补偿0 to 50℃ |
|
|
|
|
|
| 电源 |
4×1.5V |
4×1.5V |
4×1.5V |
4×1.5V |
|
|
|
|
|
| 环境温度 |
0to50℃;RH max95% |
0to50℃;RH max95% |
0to50℃;RH max95% |
0to50℃;RH max95% |
|
|
|
|
|
| 外型尺寸 |
175×41×23mm |
175×41×23mm |
175×41×23mm |
175×41×23mm |
|
|
|
|
|
| 重量 |
78g |
78g |
78g |
78g |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
